Part Number: Pilot Rope Winch

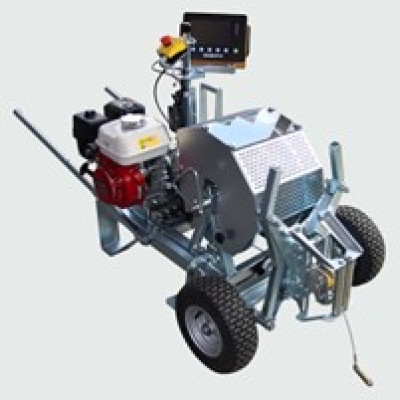

Pilot Rope Winch with Petrol Engine

  • Latest design of pilot rope winch with Honda-petrol engine.
  • Driven by a mode transmission chain drive which guarantees a higher power train to the drum.
  • For blowing-along pilot ropes from a declutched drum through conduits for preparation of introducing bigger pulling ropes from cable winches; or for direct pulling-in of smaller cables (such as fibre optic cables or single or bundle subducts).
  • Divisible Drum for coiling cords, ropes or cables and can easy be removed from the winch e.g. for using drums with other ropes.
  • Capacity up to 1100m x 4 mm or 750m x 5 mm.
  • Mobile on two pneumatic wheels in wheelbarrow form.

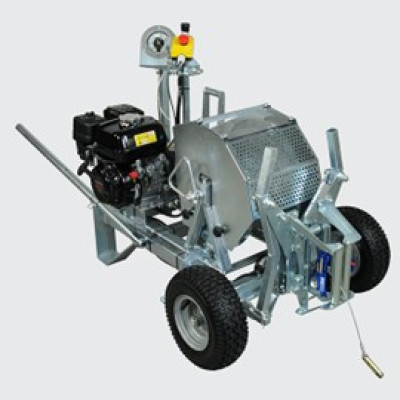

The winch is available in two different versions. With a dynamometer with adjustable maximum load and automatic switch-off or with preparation for an electronic recorder MP 50 (not included in the scope of delivery), which digitally displays and stores the pulling force, the length, as well as the speed per m/min. All data can be transferred to a PC or laptop via a USB connection. For safety reasons, the winch is limited to 5.0 kN on the lowest rope layer.

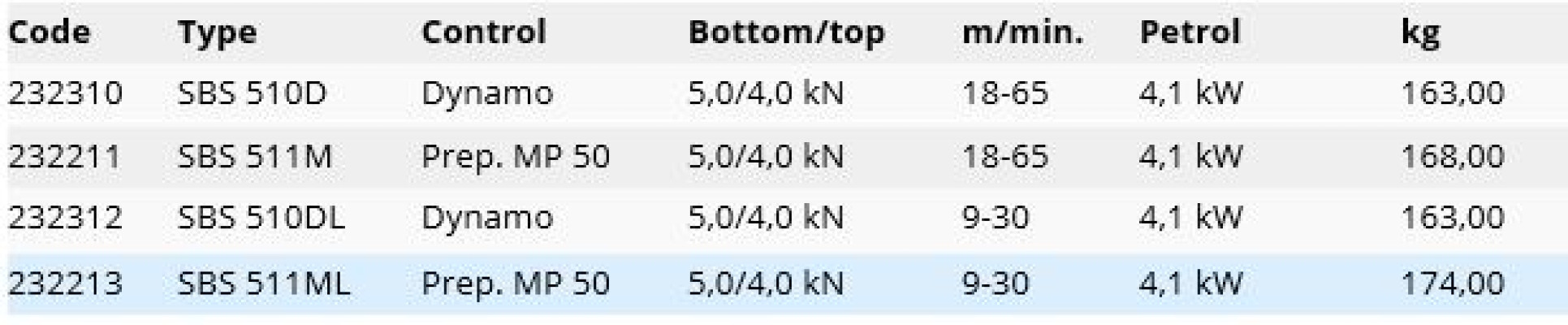

The pilot rope winches are equipped with a manual rope winding guide and a rope protection bonnet in accordance with accident prevention regulations. The winch with dynamometer can be equipped with a mech. length measuring device code 232380, SLM 510 (see Table Image) for an extra charge. The electronic recorder includes length and speed measurement.

Types SBS 510DL and 510ML with slower speed for pulling sensitive cables
