Part Number:

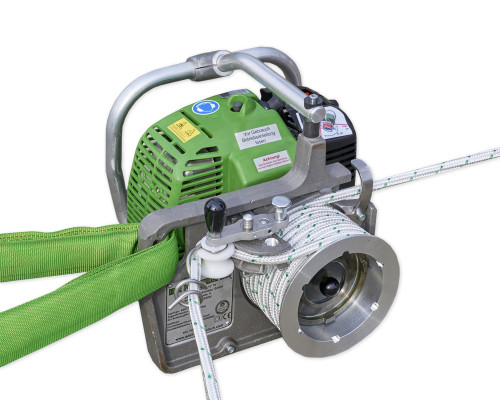

EDER Portable Capstan Winch 1800

  • 1,800kg capacity on a single line. Can be doubled by using pulleys/snatch blocks
  • 14kg weight
  • 2 gears allow different capacity and speed:
  • First Gear: 1,800kg at 12m per minute
  • Second Gear: 900kg at 24m per minute
  • Safety brake applied when rope released
  • Powered by a two-stroke engine
  • Operates with a 12-14mm rope of any length

The EDER – WINCH 1800 impresses with its lightness and great power. It pulls 125 times its own weight and can work in any position.

The EDER – WINCH 1800 is controlled outside the danger zone. By pulling lightly on the rope, the throttle trigger of the control unit is moved and the winch starts to pull.

Maximum safety thanks to the rope brake! As soon as the operator releases the rope, the winch stops and the rope is clamped in the brake. This prevents the load from slipping back unintentionally. The brake can, however, be released manually.
